100Khz Fine And Micro Multi Channel Injection Tube Bracket Ultrasonic Nozzle

100Khz Fine And Micro Multi Channel Injection Tube Bracket Ultrasonic Nozzle

MOQ: 1 واحد
قیمت: Negotation
standard packaging: Packed by carton
payment method: T/T, Western Union
Supply Capacity: 1000 unit per month
اطلاعات دقیق
محل منبع
چین
نام تجاری
FUNSONIC
گواهی
CE
Model Number
FSW-1005-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
100Khz
Max Power:
15w
محدوده اندازه ذرات خودکار:
15-40μm
Spray flow:
0.01-1ml/min
ویسکوزیته مایع:
<15 سی پی اس
Particle size:
<8μm
درخواست:
بالون طبی، استنت، اسپری سیم ریز
برجسته کردن:

Injection Tube Bracket Ultrasonic Nozzle,Micro Multi-Channel Ultrasonic Nozzle,100Khz Ultrasonic Nozzle

,

Micro Multi-Channel Ultrasonic Nozzle

,

100Khz Ultrasonic Nozzle

Product Description

100Khz Fine And Micro Multi-Channel Injection Tube Bracket Ultrasonic Nozzle





Description:



The 100Khz fine and micro multi-channel injection tube bracket ultrasonic nozzle is installed above the bracket by placing the bracket on a spindle connected to the rotating shaft. The axis can not only rotate but also translate, allowing the bracket to spray along its entire length. By performing multiple lateral movements on the bracket, the appropriate coating quality can be achieved.





Parameters:



Model FSW-1005-L
Name 100Khz Line Ultrasonic Nozzle Atomization
Frequency 100Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 0.5-2
Spray flow(ml/min) 0.01-1
Spray height(mm) 10-20
Liquid viscosity (cps) <15
Particle size (μm) <8
Diversion pressure (Mpa) <0.02
Application Suitable for Medical balloon, stent, fine wire spraying





Advantages :



1. Save materials, ultrasonic spraying can maximize material savings and greatly reduce costs, especially for expensive liquid materials. The most representative ones are fuel cell spraying and solar cell spraying.

2. Precise and controllable, some substrates require very high surface treatment, some even need to reach the nanometer level, and general spraying methods are completely inadequate. For example, the spray coating of balloon catheters and vascular stents, which are currently popular, has strict standards for the amount of drug liquid applied.

3. High uniformity, the uniformity of fine particles after ultrasonic spraying and atomization can reach over 95%, which cannot be achieved by other spraying methods. For suspensions of some solid particles, an ultrasonic dispersion system can also be configured to achieve online dispersion, stirring, and liquid supply, avoiding agglomeration and precipitation of the dispersion during the spraying process.

4. For special applications, ultrasonic spraying can be competent for spraying work in some special fields. For example, in the medical industry, test tube spraying requires the formation of a thin and uniform coating on the inner wall of the test tube.

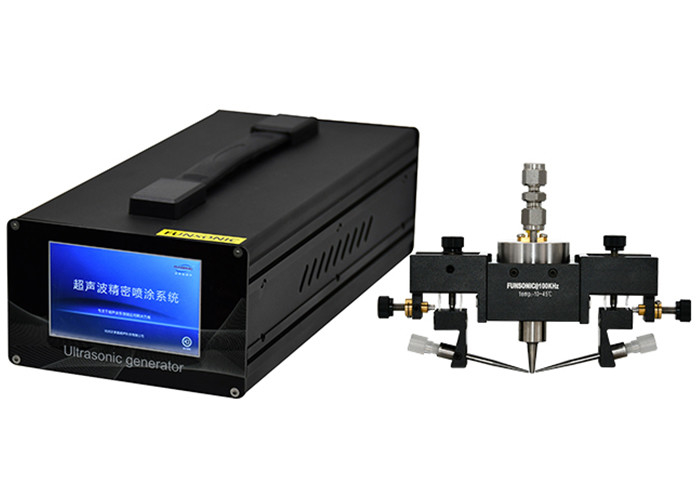

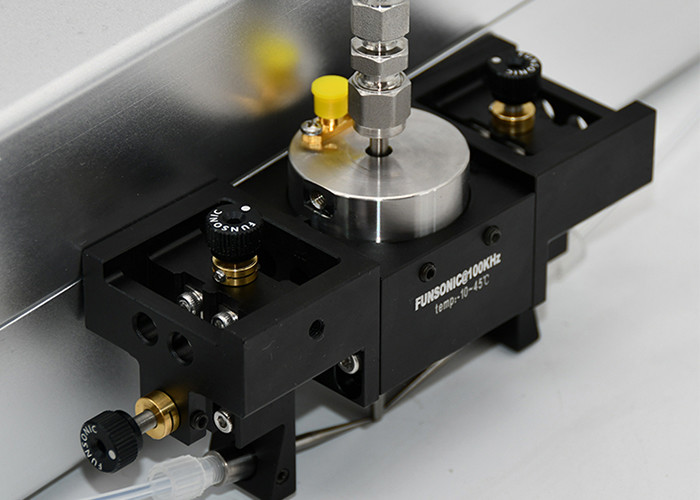

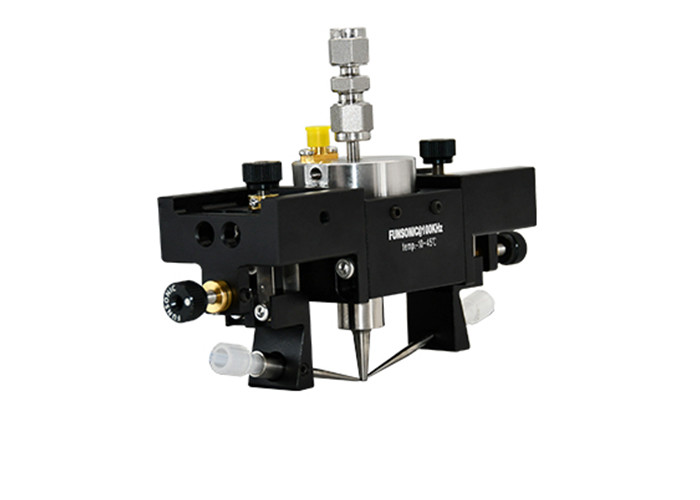

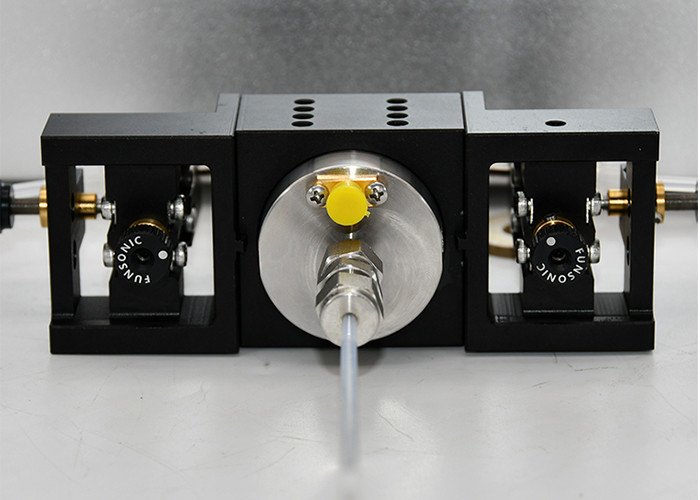

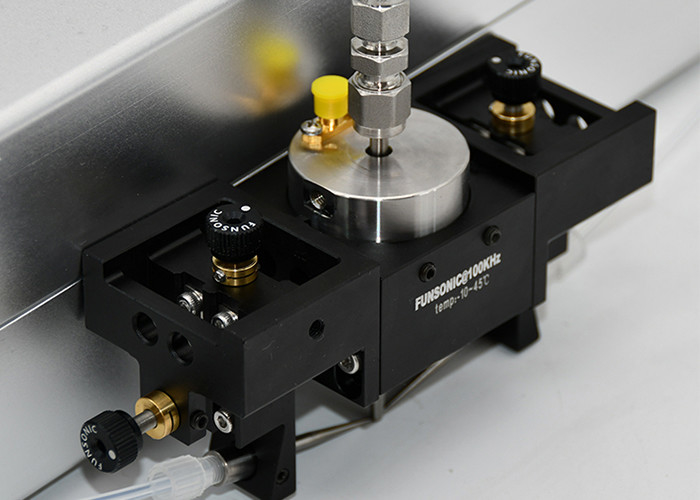

100Khz Fine And Micro Multi-Channel Injection Tube Bracket Ultrasonic Nozzle



100Khz Fine And Micro Multi Channel Injection Tube Bracket Ultrasonic Nozzle 0100Khz Fine And Micro Multi Channel Injection Tube Bracket Ultrasonic Nozzle 1
