60K High Temperature Ultrasonic Spraying Technology Nebulizer

60K High Temperature Ultrasonic Spraying Technology Nebulizer

MOQ: 1 UNIT
قیمت: Negotation
standard packaging: Packed by carton
payment method: T/T, Western Union
Supply Capacity: 1000 unit per month
اطلاعات دقیق
Place of Origin
CHINA
نام تجاری
FUNSONIC
گواهی
CE
Model Number
FSW-6007-L
Production Name:
Ultrasonic High Temperature Spray Nozzle
Frequency:
60Khz
حداکثر توان:
1 تا 15 ولت
Automized Particle Size Range:
15-40μm
اسپری فلو:
0.5-10 میلی لیتر در دقیقه
Liquid viscosity:
<15cps
اندازه ذرات:
<8μm
Application:
suitable for Brackets, balloon conduits, wires, flux for selective welding applications
برجسته کردن:

Ultrasonic Spraying Technology Nebulizer,60K Ultrasonic Spraying Nebulizer,High Temperature Ultrasonic Spraying Nebulizer

,

60K Ultrasonic Spraying Nebulizer

,

High Temperature Ultrasonic Spraying Nebulizer

Product Description

60K High-Temperature Ultrasonic Spraying Technology Nebulizer





Description:



60K high-temperature ultrasonic atomization nozzle is a type of ultrasonic atomization nozzle product specifically designed for high-temperature situations. It uses special high-temperature ceramic piezoelectric components and high-temperature structural materials, enabling it to operate normally in temperature environments up to 600 ° C.





Parameters:



Type FSW-6007-L
Name Ultrasonic High Temperature Spray Coating Nozzle
Frequency 60Khz (50/60/120Khz for selection)
Atomized particle size range (μm) 15-40
Spray width(mm) 1-3
Spray flow(ml/min) 0.5-10
Spray height(mm) 2-10
Permissible liquid viscosity(cps) <15
Allow particle size(μm) <8
Diversion pressure (Mpa) <0.01
Application suitable for Brackets, balloon conduits, wires, flux for selective welding applications





Application :



1. Metallurgical industry:
Application scenarios: Atomization cooling and humidification in high-temperature furnaces, molten metal pools, and other environments
Advantages: High temperature resistance, improved equipment stability and production efficiency
2. Chemical industry:
Application scenario: reactant/medium spray of high-temperature reaction kettle, distillation tower, etc
Advantages: Corrosion resistance, helps improve reaction control and product quality
3. Glass industry:
Application scenario: atomization cooling in high-temperature areas such as glass furnaces and annealing furnaces
Advantages: Good high-temperature stability, beneficial for optimizing glass manufacturing processes
4. Electronics industry:
Application scenario: Cleaning and disinfection in semiconductor equipment and electronic component manufacturing
Advantages: Low noise, no environmental pollution, helps improve cleanliness
5. Aerospace field:
Application scenario: engine spray cooling, cabin environment disinfection, etc
Advantages: High temperature resistance, vibration and impact resistance, suitable for harsh environmental applications
In general, the 60K high-temperature ultrasonic atomizing nozzle has good application prospects in various industrial fields that need fine atomization control under high temperature environment, and is a very practical high-end spray equipment. Its excellent performance helps to improve the stability and efficiency of related production processes.

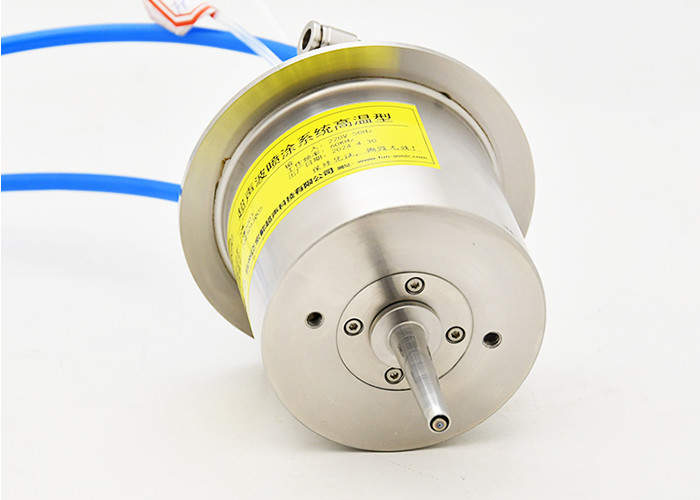

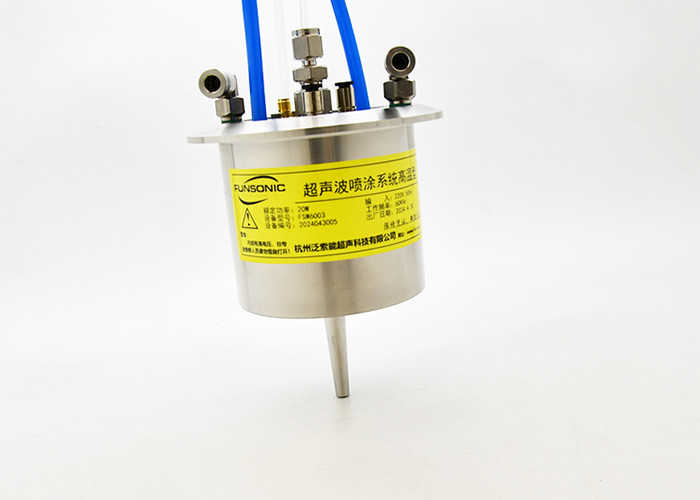

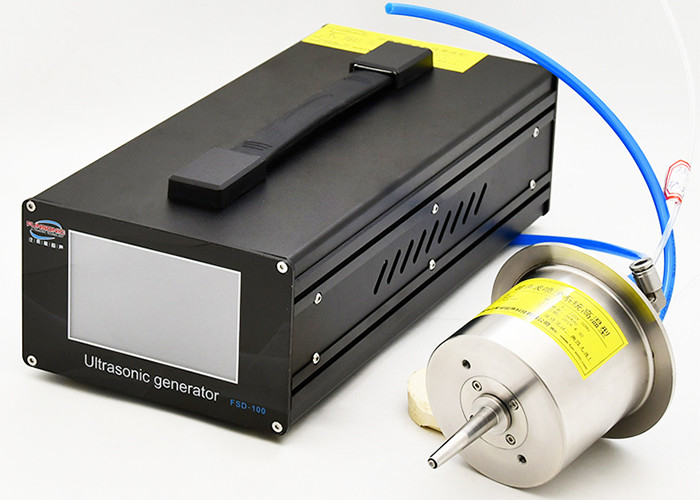

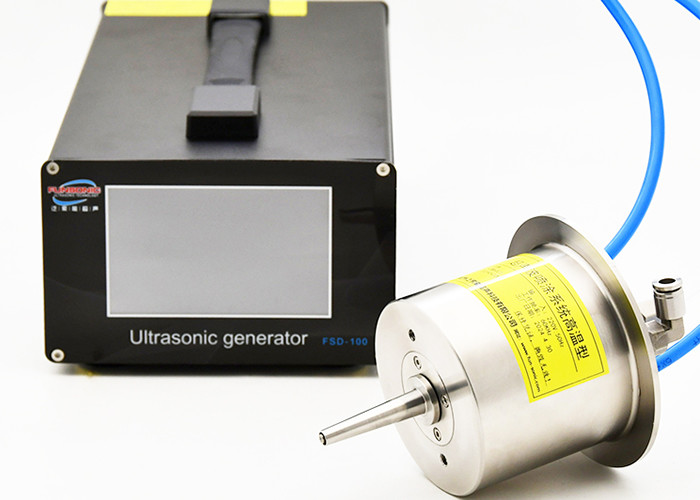

60K High-Temperature Ultrasonic Spraying Technology Nebulizer



60K High Temperature Ultrasonic Spraying Technology Nebulizer 0



60K High Temperature Ultrasonic Spraying Technology Nebulizer 1
